自動四角貼標機
自動貼標機性能特點 Characteristcs
本機主要應用于天地盒禮盒灰板紙、密度板四個角的貼合，自動送紙板、沖壓、自動送膠帶、貼膠帶、出盒一氣合成。可單獨使用、也可與半自動配合使用。體積小、功耗小、速度快、節省人工提高效率。
This machine is mainly used in world box paperboard boxes,MDF four corners of the fit,automatic feed cardboard,stamping,automatic feed tape,taped,stretch out the box synthesis.May be used alone,can also be used in conjunction with a semi-automatic.Small size,low power consumption,fast,save labor and improve efficiency.
產品詳情
TB-TJ-400自動貼標機優點 Benefits

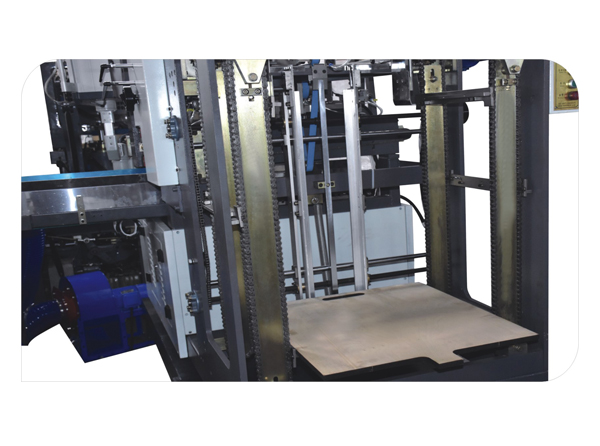

1.紙板飛達自動送，循環換板不停機送紙，可堆放1000mm。
2.更換模具只需拆裝2顆螺絲，盒型大小螺桿搖動調節，更換規格15分鐘，簡單快捷。

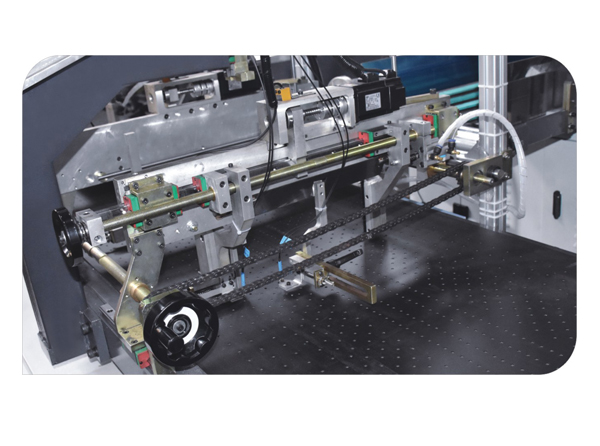

3.膠帶紙自動輸送、分切、貼角，一次性完成四個角貼合。
4.膠帶紙用完自動報警，膠帶紙單次Zui長可輸送80mm。
1.A Cardboard feeder automatic feed,the feed cycle without stopping the machine for board,can be stacked up to 1000mm.
2.Replace the mold just two removable screws,screw size box type swing adjustments,changing specifications of 15 minutes,is simple and quick.
3.Paper tape automatic conveying,cutting,fillet,once completed the four corners fit.
4.Tape the paper runs out automatic alarm,the longest single paper tape can be transported 80mm.
技術參數 Technical Parameters
型號 Model TB-TJ-400
Zui大成品尺寸 The maximum finished size 400x300x130mm
Zui小成品尺寸 The minimum finished size 120x70x20mm
紙張厚度 Paper Thickness 1-5mm
速度 Speed 30-35個/分
電源 Power supply 380V/50Hz
功率 Power 3kw
外形尺寸 Dimensions L1930xW1400xH1890mm
整機重量 Total Weight 1T
